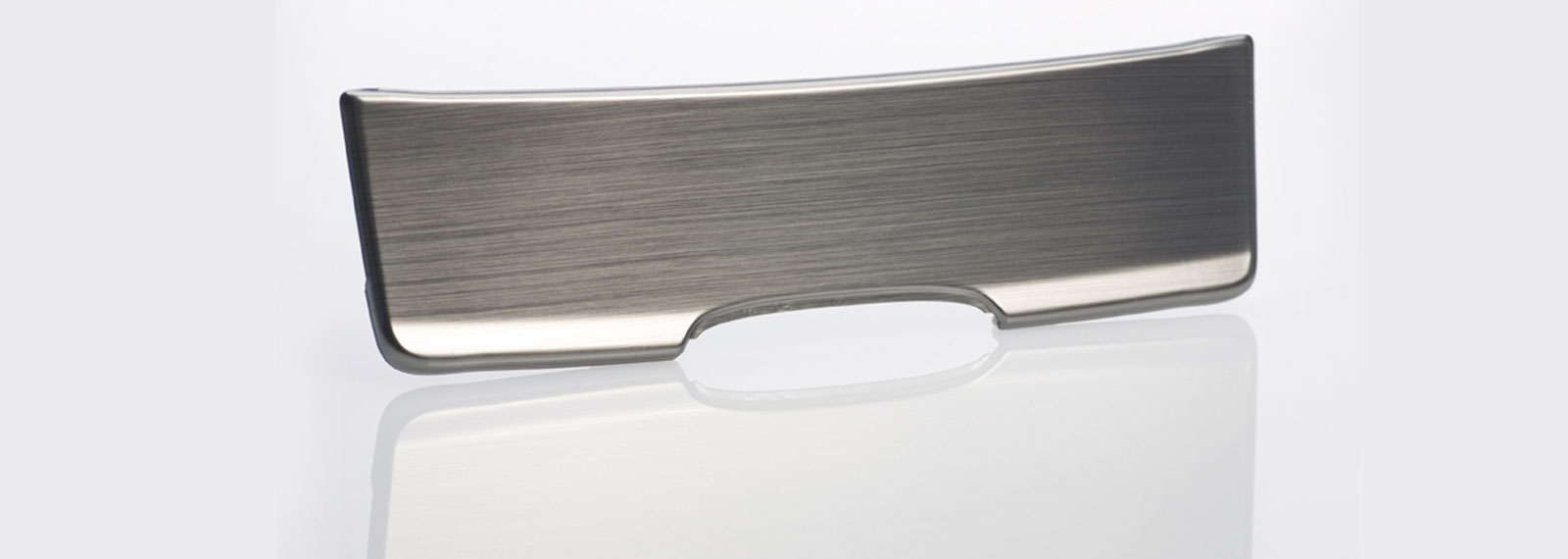

凭借模内装饰技术，在大多数情况下，聚酯薄膜携带用于装饰注射件的图像。起初，薄膜由薄膜送料器送至两个半模具之间，由锁模框架定位并锁住。然后，模具的合模动作开始使薄膜适合模腔形状。与IML技术类似，由于当时的压力和温度，塑料熔体与分离油漆层相结合，以在注射步骤中形成牢固结合。熔体冷却并且模具开模后，可以移除完成的装饰件，因此装饰件在该过程中自动从薄膜基材移除。现在，送料器定位薄膜，以进行下一个注射循环。目前，此IMD技术用于装饰由各种各样的塑料材料制成的制件，如PP、ABS、PC、ABS/PC、ASA、SAN、PMMA或PBT。
1.The imprinted film support (roll labels) is positioned within the reach of the mould.
2.The film support is clamped and adjusted by means of a clamping frame and vacuum.
3.The mould closes, and the injection cycle starts.
4.The paint layers of the substrate film combine due to the prevailing pressure and temperature.
5.The finished part is removed while the film is fed for the next cycle at the same time
Systec 350 - 2300 IMD production cell including built-in sheet feeding device, vacuum technology and laminar flow box
